Multi-color optional, support customization
Dimensions: 500mm X 500mm X 400mm
Can choose colour:
Monomer pontoon weight: 7 kg ± 0.3 kg
Carrying capacity: 350 kg/㎡
Material: High molecular weight high density polyethylene (HMWHDPE)
Adaptation temperature: -60℃/+80℃
Buoyant ear pulling force: can withstand 1.8 tons of heavy object pulling force (18KN) for 30 minutes
Pressure on the side of a single pontoon: 50/KN (load bearing at static load)
Tensile strength: 25.0MP
IZOD impact strength: 207J/M
PH value: can adapt to the environment with PH value within 3-9, except for strong acid and alkali

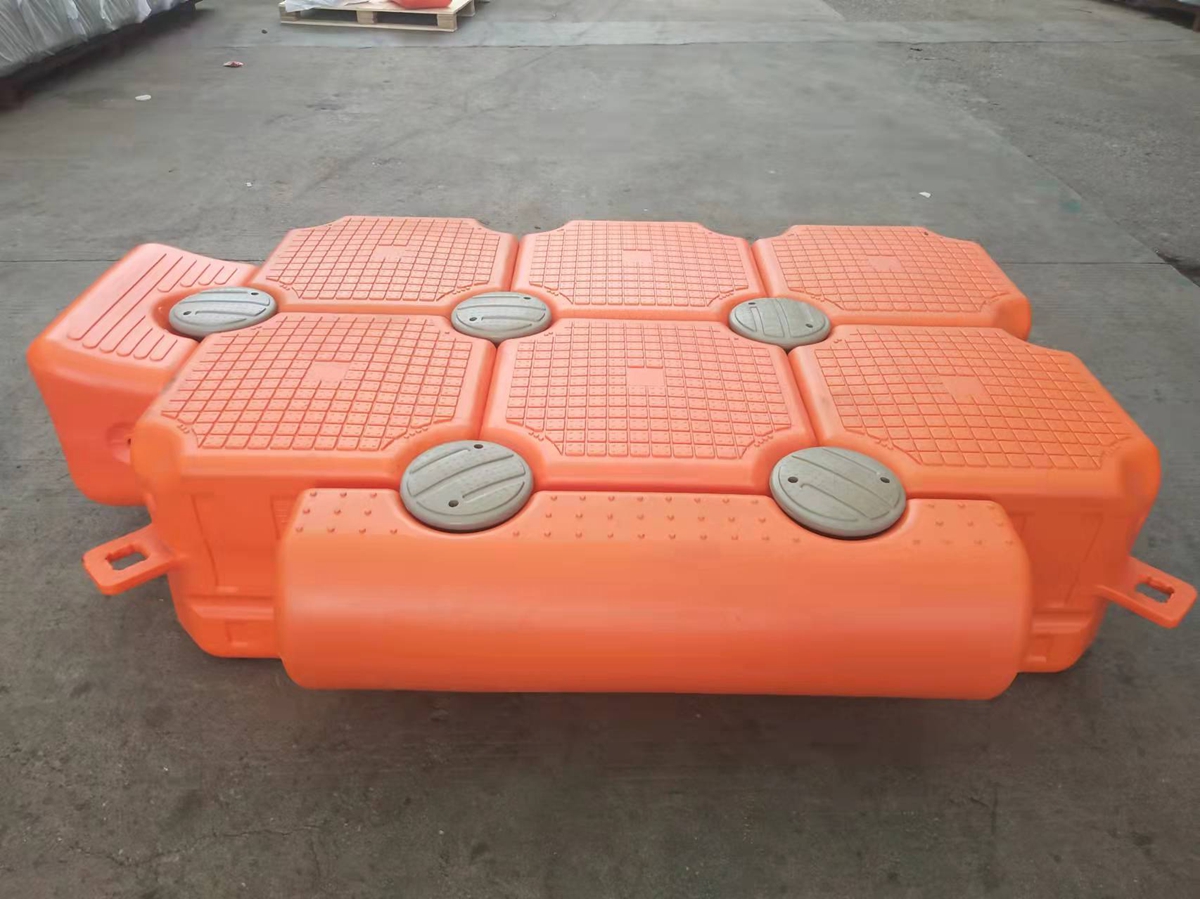

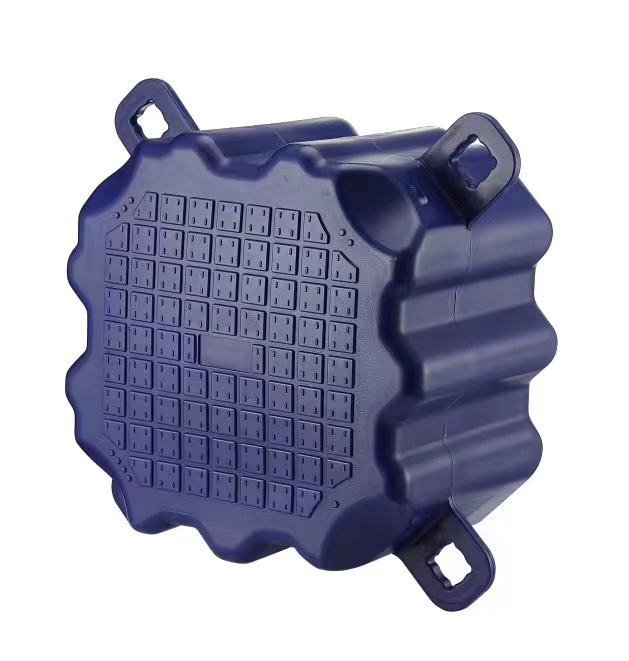

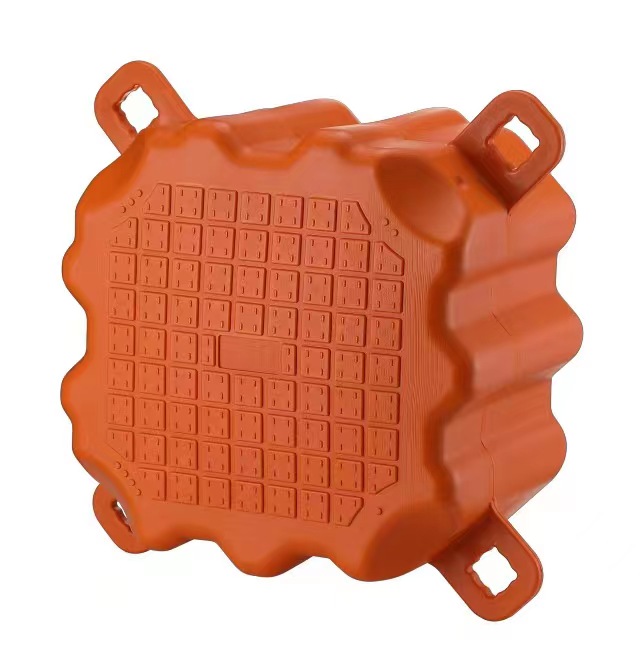

The main feature of this product lies in its four positioning earrings. Each of the four corners of the buoy body is provided with a positioning earring staggered on the same plane. There are positioning holes on the earrings. When they are together, the four opposite earrings just overlap, and can be fixed by inserting a special pin. By extending them in this way, they can be combined into a floating platform of any shape and size, which is easy and quick to disassemble and assemble, flexible to assemble, and easy to shape. Versatile and solid structure.
Accessories pictures | Accessory name | Specifications (measured by hand) | weight |
| Three-hole railing post | 150*12*300px | 2.3kg |
| Two hole railing post | 120*12*300px | 2.1kg |
| big mushroom head | 18.5*4.8*612.5px | 0.65kg |
| small mushroom head | 10*10*425px | 0.33kg |
| Flat head screw set | 9*9*350px | 0.16kg |
| Lifting ring screw set | 9.5*9.5*500px | 0.19kg |
| bollard | 45*26*475px | 1kg |
| double-layer latch | 18.5*4.8*1837.5px | 1kg |
| Yonggao ppr railing | 4m | |
| float wrench | | |
